Cables Stock List

To complement bespoke cable design and manufacturing, Hydro Group has made a considerable investment in cable stock, making sure that customers with short lead times receive a speedy service, both locally and internationally. Our warehouse consists of a wide range of cable configurations for both subsea and topside applications.

All cables are designed and tested to several quality standards, and the range includes ROV tethers, instrumentation, fibre optic, TV, signal, coaxial, oceanographic, sonar and communication cables. Please click on the product below to view specifications and make your enquiry.

Hydro group cable stock 02

Cable Stock List

Please click below for 'drop-down' info box and e-mail enquiry option.

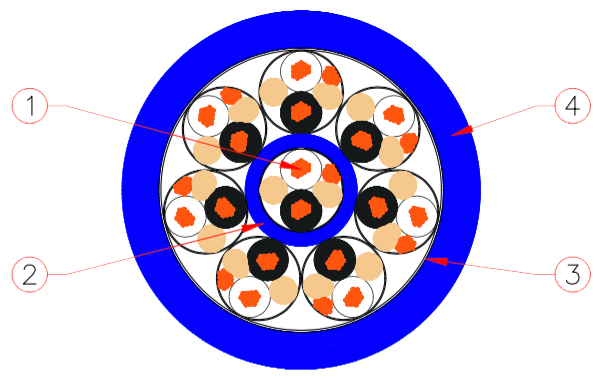

8 twisted screened pairs cs0011

Part no: CS0011

CABLE DESCRIPTION: 8 TWISTED SCREENED PAIRS (0.5 mm², MEDIUM DENSITY POLYETHYLENE INSULATION) + POLYURETHANE SHEATH (R.T. 1.75 mm)

OVERALL DIAMETER: 17.0 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 1650 PSI

e-mail your enquiry

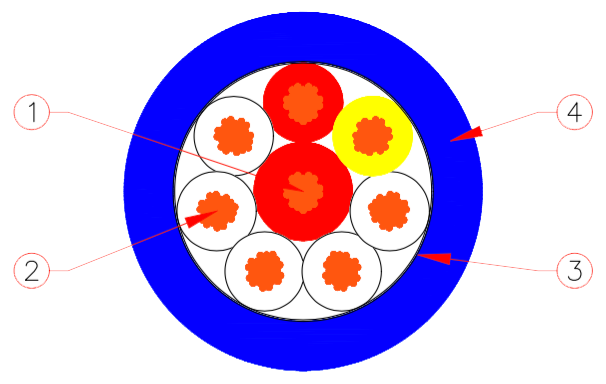

8 conductors cs0013

Part no: CS0013

CABLE DESCRIPTION: 8 CONDUCTORS (1.0 mm², MEDIUM DENSITY POLYETHYLENE INSULATION) + POLYURETHANE SHEATH (R.T. 1.5 mm)

OVERALL DIAMETER: 11.3 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 3000 PSI

e-mail your enquiry

4 tinned copper conductors cs021

Part no: CS021

CABLE DESCRIPTION: 4 TINNED COPPER CONDUCTORS (2.5 mm², MEDIUM DENSITY POLYETHYLENE INSULATION) + POLYURETHANE SHEATH (R.T. 2.0 mm)

OVERALL DIAMETER: 12.6 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

1 coaxial cs0087

Part no: CS087

CABLE DESCRIPTION: ONE COAXIAL (RG 58, 50 Ω) + POLYURETHANE SHEATH (R.T. 1.65 mm)

OVERALL DIAMETER: 7.0mm ± 0.5mm

MAXIMUM WORKING PRESSURE: 1000 PSI

e-mail your enquiry

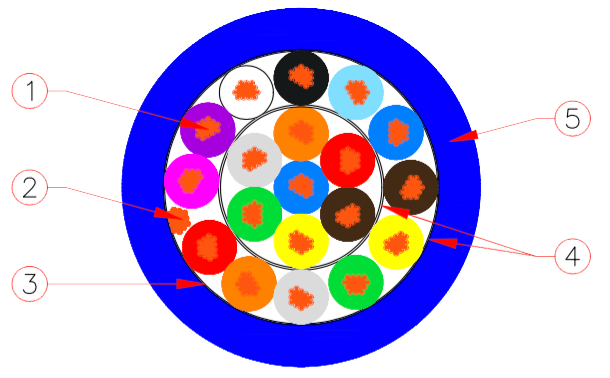

19 conductors cs0090

Part no: CS0090

CABLE DESCRIPTION: 19 CONDUCTORS (0.5 mm², MEDIUM DENSITY POLYETHYLENE INSULATION) + OVERALL SCREEN + POLYURETHANE SHEATH (R.T. 1.5 mm)

OVERALL DIAMETER: 13.0 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 1650 PSI

e-mail your enquiry

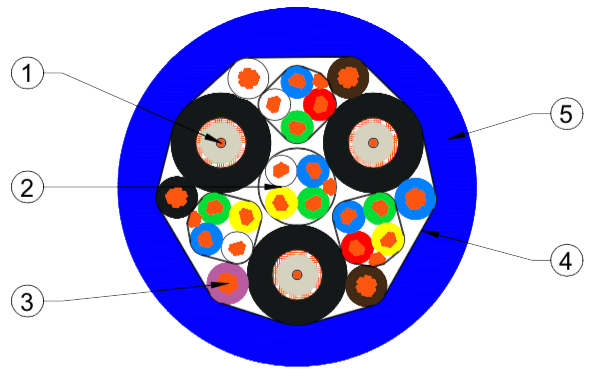

3 coaxials cs098

Part no: CS098

CABLE DESCRIPTION: 3 COAXIALS (75 Ω, RG59 B/U, SOLID CORE CONSTRUCTION) + 4 TWISTED SCREENED QUADS (0.5 mm², 16/0.2 CLASS 5 TINNED COPPER WIRE, MEDIUM DENSITY POLYETHYLENE INSULATION) + 6 TINNED COPPER CONDUCTORS (1.0 mm², 32/0.2 CLASS 5 TINNED COPPER WIRE, MEDIUM DENSITY POLYETHYLENE INSULATION) + POLYURETHANE SHEATH (R.T. 2.5 mm)

OVERALL DIAMETER: 22.0 mm ±1.0 mm

MAXIMUM WORKING PRESSURE: 3000 PSI

e-mail your enquiry

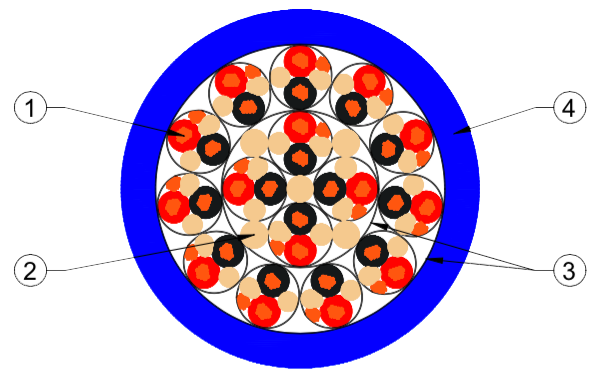

15 twisted screened pairs cs276

Part no: CS0276

CABLE DESCRIPTION: 15 TWISTED SCREENED PAIRS (0.5 mm², MEDIUM DENSITY POLYETHYLENE INSULATION) + POLYURETHANE SHEATH (R.T. 2.1 mm)

OVERALL DIAMETER: 22.0 mm ±1.0 mm

MAXIMUM WORKING PRESSURE: 9500 PSI

e-mail your enquiry

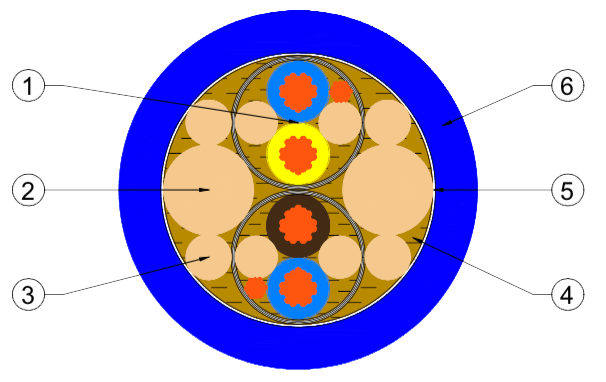

2 twisted screened w b pairs cs345 ZH

Part no: CS0345ZH

CABLE DESCRIPTION: 2 TWISTED SCREENED WATER BLOCKED PAIRS (1.0 mm², MEDIUM DENSITY POLYETHYLENE INSULATION) + WAX WATER BLOCKING COMPOUND + WATER BLOCKING TAPE + POLYURETHANE SHEATH (RADIAL THICKNESS 1.4 mm)

OVERALL DIAMETER: 12.0 mm +0.0/ -0.5 mm

MAXIMUM WORKING PRESSURE: 10000 PSI

e-mail your enquiry

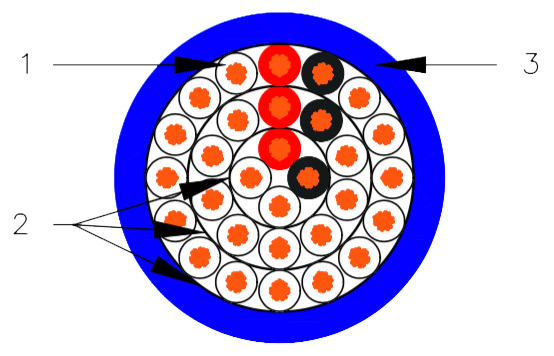

4 cores cs354

Part no: CS0354

CABLE DESCRIPTION: 4 CORES (1.0 sq mm, M.D.P.E. INSUL.) ARE TWISTED TOGETHER AND BOUND IN WRAP OF POLYESTER TAPE. 10 CORES (1.0 sq mm, M.D.P.E. INSUL.) ARE TWISTED AROUND THE CENTRAL BUNDLE AND BOUND IN A WRAP OF POLYESTER TAPE. 16 CORES (1.0 sq mm, M.D.P.E. INSUL.) ARE TWISTED AROUND THE BUNDLE AND BOUND IN POLYESTER TAPE. A ZERO HALOGEN FLAME RETARDENT POLYURETHANE SHEATH IS EXTRUDED OVER THE BUNDLE TO THE FINISHED DIAMETER OF 20.0 mm (R.T. 1.9 mm).

OVERALL DIAMETER: 20.0 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 1250 PSI

e-mail your enquiry

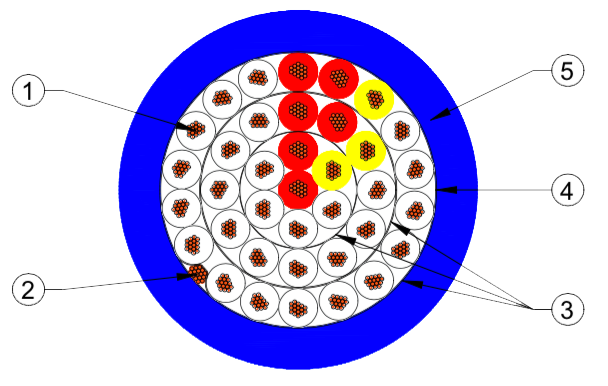

37 tinned copper conductors cs360

Part no: CS0360

CABLE DESCRIPTION: 37 TINNED COPPER CONDUCTORS (0.5 mm², HIGH DENSITY POLYETHYLENE INSULATION) + OVERALL SCREEN + POLYURETHANE SHEATH (R.T. 2.05 mm)

OVERALL DIAMETER: 18.0 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

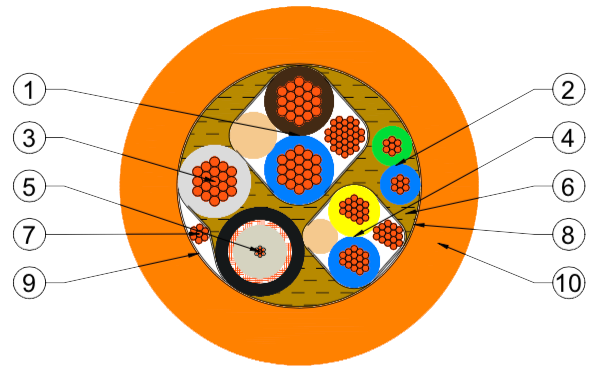

1 twisted screened pair cs382

Part no: CS0382

CABLE DESCRIPTION: 1 TWISTED SCREENED PAIR (1.34 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION, ALUMINIUM TAPE + 1.34 mm², STRANDED TINNED COPPER DRAIN WIRE INDIVIDUAL SCREEN) + 1 TWISTED SCREENED PAIR (0.5 mm², CLASS 5 STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION, ALUMINIUM TAPE + 0.5 mm², STRANDED TINNED COPPER DRAIN WIRE INDIVIDUAL SCREEN) + 1 TWISTED PAIR (0.22 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION) + 1 CORE (1.34 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION) + 1 COAXIAL (75 Ω, RG 179) + WATER BLOCKING COMPOUND + COLLECTIVE SCREEN (ALUMINIUM TAPE + 0.22 mm², STRANDED TINNED COPPER DRAIN WIRE) + POLYURETHANE SHEATH (RADIAL THICKNESS 1.75 mm)

OVERALL DIAMETER: 11mm ± 0.5mm

MAXIMUM WORKING PRESSURE: 4500 PSI

e-mail your enquiry

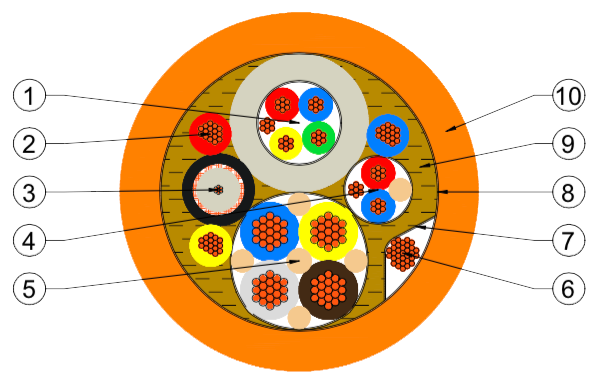

1 pvc jacketed twisted screened quad cs410

Part no: CS0410

CABLE DESCRIPTION: 1 P.V.C. JACKETED TWISTED SCREENED QUAD (0.22 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION, ALUMINIUM TAPE + 0.22 mm², STRANDED TINNED COPPER DRAIN WIRE INDIVIDUAL SCREEN) + 3 TINNED COPPER CONDUCTORS (0.5 mm², CLASS 5 STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION) + 1 COAXIAL (75 Ω RG179) + 1 TWISTED SCREENED PAIR (0.22 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION, ALUMINIUM TAPE + 0.22 mm², STRANDED TINNED COPPER DRAIN WIRE INDIVIDUAL SCREEN) + 1 TWISTED QUAD (1.34 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION) + WATER BLOCKING COMPOUND + COLLECTIVE SCREEN (ALUMINIUM TAPE + 1.0 CLASS 5 STRANDED TINNED COPPER DRAIN WIRE) + POLYURETHANE SHEATH (RADIAL THICKNESS 1.5 mm)

OVERALL DIAMETER: 13.5mm ± 0.5mm

MAXIMUM WORKING PRESSURE: 3000 PSI

e-mail your enquiry

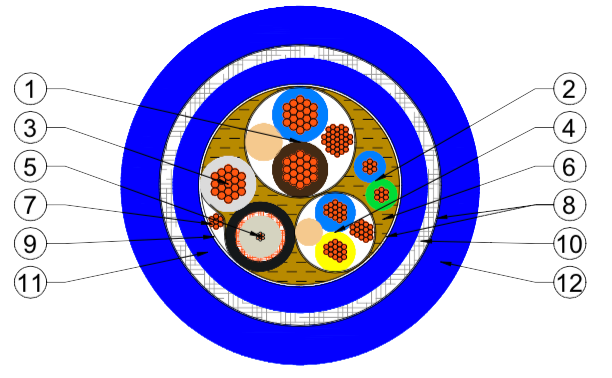

1 twisted screened pair cs434

Part no: CS0434

CABLE DESCRIPTION: 1 TWISTED SCREENED PAIR (1.34 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION, ALUMINIUM TAPE + 1.34 mm², STRANDED TINNED COPPER DRAIN WIRE INDIVIDUAL SCREEN) + 1 TWISTED SCREENED PAIR (0.5 mm², CLASS 5 STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION, ALUMINIUM TAPE + 0.5 mm², CLASS 5 STRANDED TINNED COPPER DRAIN WIRE INDIVIDUAL SCREEN) + 1 TWISTED PAIR (0.22 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION) + 1 CORE (1.34 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION) + 1 COAXIAL (75 Ω, RG 179) + WATER BLOCKING COMPOUND + COLLECTIVE SCREEN (ALUMINIUM TAPE + 0.22 mm², STRANDED TINNED COPPER DRAIN WIRE) + POLYURETHANE INNER SHEATH (RADIAL THICKNESS 1.0 mm) + GALVANISED STEEL WIRE BRAID + POLYURETHANE SHEATH (RADIAL THICKNESS 1.5 mm)

OVERALL DIAMETER: 14.1mm ± 0.5mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

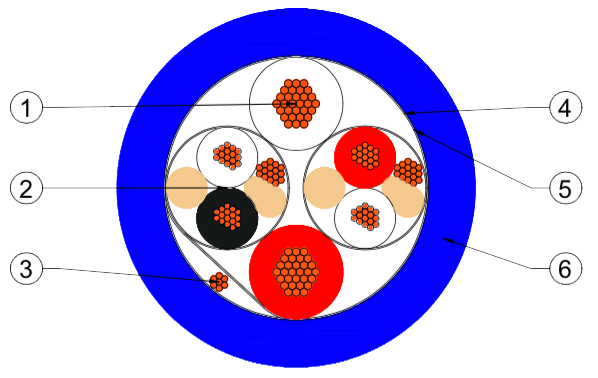

2 cores cs589

Part no: CS0589

CABLE DESCRIPTION: 2 CORES (1.5 mm², CLASS 5 STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION) + 2 TWISTED SCREENED PAIRS (0.5 mm², CLASS 5 STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION, ALUMINIUM TAPE + 0.5 mm², CLASS 5 STRANDED TINNED COPPER DRAIN WIRE INDIVIDUAL SCREEN) + COLLECTIVE SCREEN (ALUMINIUM TAPE + 0.22 mm², CLASS 5 STRANDED TINNED COPPER DRAIN WIRE) + POLYURETHANE SHEATH (RADIAL THICKNESS 1.5 mm)

OVERALL DIAMETER: 11.5 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

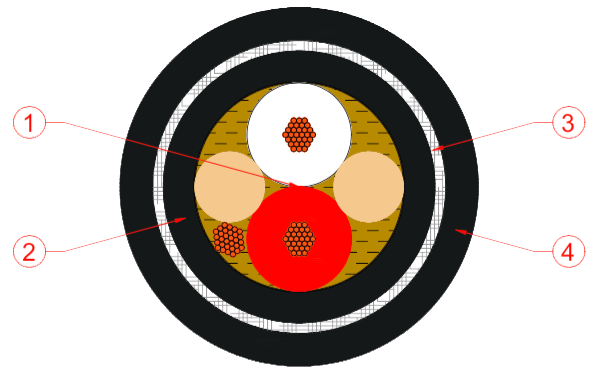

1 twisted screened pair cs602

Part no: CS0602

CABLE DESCRIPTION: 1 TWISTED SCREENED PAIR (1.5 mm², CLASS 5 STRANDED TINNED COPPER, ETHYLENE PROPYLENE RUBBER INSULATION, WATER BLOCKING COMPOUND, ALUMINIUM TAPE + 1.5 mm², CLASS 5 STRANDED TINNED COPPER DRAIN WIRE SCREEN) + POLYURETHANE INNER SHEATH (RADIAL THICKNESS 1.2 mm) + GALVANISED STEEL WIRE BRAID + POLYURETHANE SHEATH (RADIAL THICKNESS 1.5 mm)

OVERALL DIAMETER: 16.5 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

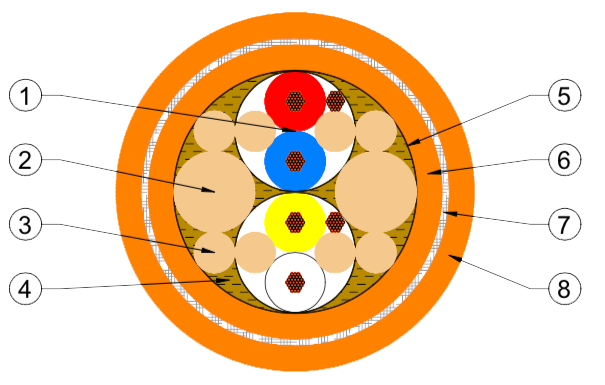

2 twisted screened pairs cs755

Part no: CS0755

CABLE DESCRIPTION: 2 TWISTED SCREENED PAIRS (1.5 mm², CLASS 5 STRANDED TINNED COPPER, ETHYLENE PROPYLENE RUBBER INSULATION, ALUMINIUM TAPE + 1.5 mm², CLASS 5 STRANDED TINNED COPPER DRAIN WIRE INDIVIDUAL SCREEN) + WATER BLOCKING COMPOUND + POLYURETHANE BEDDING SHEATH (RADIAL THICKNESS 2.0 mm) + GALVANISED STEEL WIRE BRAID + POLYURETHANE SHEATH (RADIAL THICKNESS 2.0 mm)

OVERALL DIAMETER: 28.7 mm ±1.0 mm

MAXIMUM WORKING PRESSURE: 3000 PSI

e-mail your enquiry

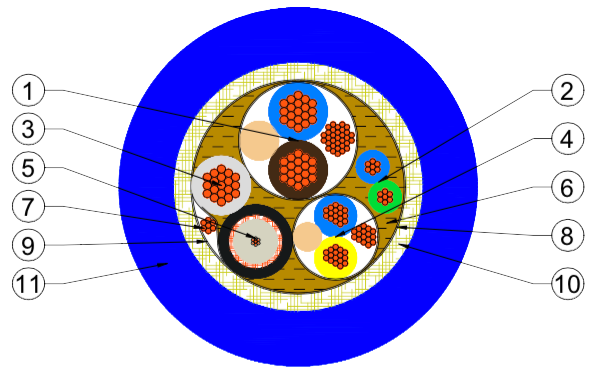

1 twisted screened pair cs908

Part no: CS0908

CABLE DESCRIPTION: 1 TWISTED SCREENED PAIR (1.34 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION, ALUMINIUM TAPE + 1.34 mm², STRANDED TINNED COPPER DRAIN WIRE INDIVIDUAL SCREEN) + 1 TWISTED SCREENED PAIR (0.5 mm², CLASS 5 STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION, ALUMINIUM TAPE + 0.5 mm², CLASS 5 STRANDED TINNED COPPER DRAIN WIRE INDIVIDUAL SCREEN) + 1 TWISTED PAIR (0.22 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION) + 1 CORE (1.34 mm², STRANDED TINNED COPPER, MEDIUM DENSITY POLYETHYLENE INSULATION) + 1 COAXIAL (75 Ω, RG 179) + WATER BLOCKING COMPOUND + COLLECTIVE SCREEN (ALUMINIUM TAPE + 0.22 mm², STRANDED TINNED COPPER DRAIN WIRE) + VECTRAN FIBRE BRAIDED STRENGTH MEMBER (MINIMUM BREAK LOAD 1134 kg.f) + POLYURETHANE SHEATH (RADIAL THICKNESS 2.0 mm)

OVERALL DIAMETER: 13.2 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

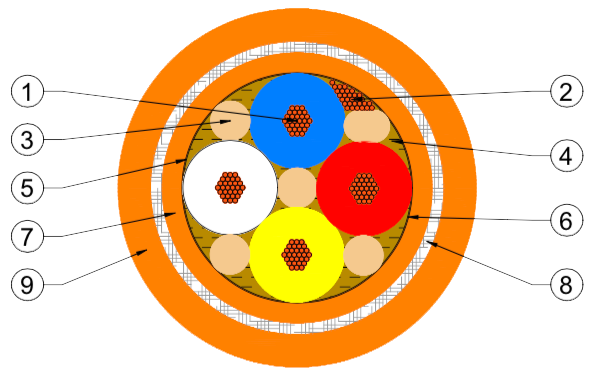

4 cores cs911

Part no: CS0911

CABLE DESCRIPTION: 4 CORES (1.5 mm², CLASS 5 STRANDED TINNED COPPER, ETHYLENE PROPYLENE RUBBER INSULATION) + WATER BLOCKING COMPOUND + COLLECTIVE SCREEN (ALUMINIUM TAPE + 1.5 mm², CLASS 5 STRANDED TINNED COPPER DRAIN WIRE) + POLYURETHANE INNER SHEATH (RADIAL THICKNESS 1.0 mm) + GALVANISED STEEL WIRE BRAID + POLYURETHANE SHEATH (RADIAL THICKNESS 1.7 mm)

OVERALL DIAMETER: 18.2 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

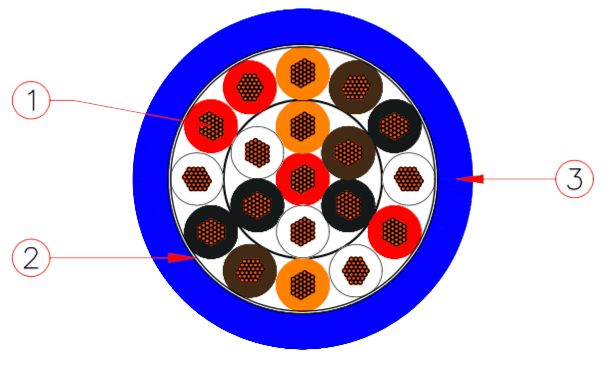

19 cores cs968

Part no: CS0968

CABLE DESCRIPTION: 19 CORES (1.5 mm², 30/0.25, M.D.P.E. INSUL.) + POLYURETHANE SHEATH (R.T. 2.0 mm)

OVERALL DIAMETER: 19.4 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2000 PSI

e-mail your enquiry

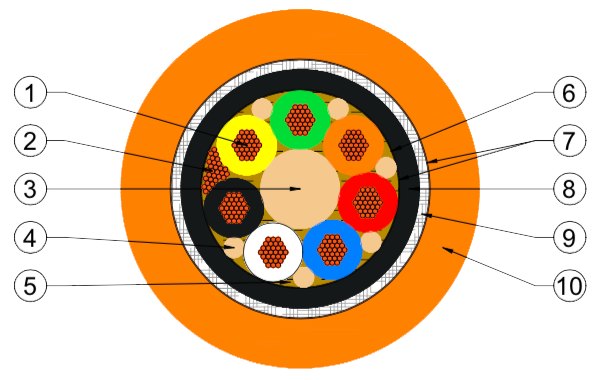

7 cores cs1235

Part no: CS1235

CABLE DESCRIPTION: 7 CORES (1.5 mm², CLASS 5 STRANDED TINNED COPPER, CROSS LINKED POLYETHYLENE INSULATION) + COLLECTIVE SCREEN (ALUMINIUM TAPE + 1.5 mm², CLASS 5 STRANDED TINNED COPPER DRAIN WIRE) + WATER BLOCKING COMPOUND + POLYURETHANE INNER SHEATH (RADIAL THICKNESS 1.0 mm) + GALVANISED STEEL WIRE BRAID + POLYURETHANE SHEATH (RADIAL THICKNESS 2.5 mm)

OVERALL DIAMETER: 18.2 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

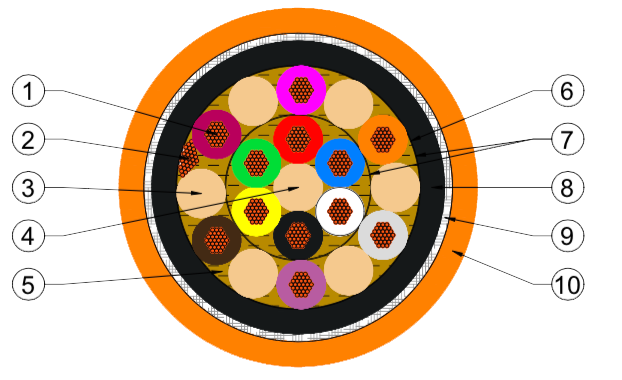

12 cores cs1236

Part no: CS1236

CABLE DESCRIPTION: 12 CORES (1.5 mm², CLASS 5 STRANDED TINNED COPPER, CROSS LINKED POLYETHYLENE INSULATION) + COLLECTIVE SCREEN (ALUMINIUM TAPE + 1.5 mm², CLASS 5 STRANDED TINNED COPPER DRAIN WIRE) + WATER BLOCKING COMPOUND + POLYURETHANE INNER SHEATH (RADIAL THICKNESS 1.5 mm) + GALVANISED STEEL WIRE BRAID + POLYURETHANE SHEATH (RADIAL THICKNESS 1.55 mm)

OVERALL DIAMETER: 22.3 mm ±1.0 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

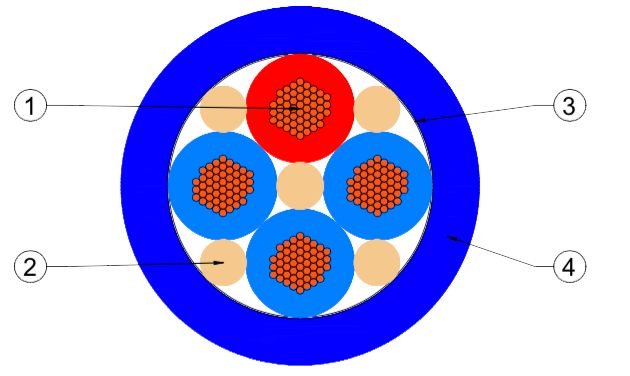

4 cores cs2102

Part no: CS2102

CABLE DESCRIPTION: 4 CORES (2.5 mm², CLASS 5 STRANDED TINNED COPPER, CROSS LINKED POLYETHYLENE INSULATION) + POLYURETHANE SHEATH (RADIAL THICKNESS 1.5 mm)

OVERALL DIAMETER: 11.6 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

4 tinned copper conductors cs5624

Part no: CS5624

CABLE DESCRIPTION: 4 TINNED COPPER CONDUCTORS (1.0 mm², E.P.R. INSULATION) + ONE JACKETED, GEL FILLED STAINLESS STEEL TUBE WITH AT LEAST 4 FIBRES (9/125 SINGLEMODE) + ONE JACKETED, GEL FILLED STAINLESS STEEL TUBE WITH AT LEAST 4 FIBRES (50/125 MULTIMODE) + HIGH SHORE HARDNESS POLYURETHANE BEDDING SHEATH (R.T. 1.5 mm) + VECTRAN FIBRE BRAID (M.B.L. 2268 kg) + POLYURETHANE SHEATH (R.T. 1.5 mm)

OVERALL DIAMETER: 16.4 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

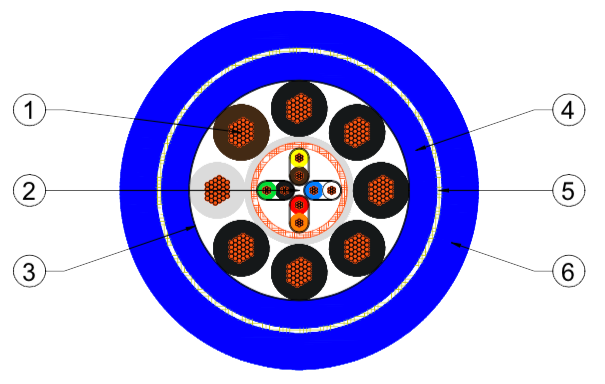

8 cores cs7318

Part no: CS07318

CABLE DESCRIPTION: 8 CORES (1.5 mm², CLASS 5 TINNED COPPER, CROSS LINKED POLYETHYLENE INSULATION) + 1 CAT 7 F/S.T.P. COMPONENT + HIGH SHORE HARDNESS POLYURETHANE BEDDING SHEATH (RADIAL THICKNESS 1.5 mm) + VECTRAN FIBRE BRAIDED STRENGTH MEMBER (MINIMUM BREAK LOAD 567 kg.f) + POLYURETHANE SHEATH (RADIAL THICKNESS 2.0 mm)

OVERALL DIAMETER: 19.8 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry

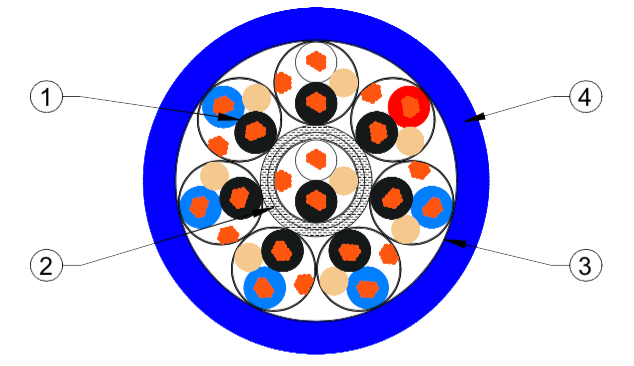

8 twisted screened pairs cs7747

Part no: CS7747

CABLE DESCRIPTION: 8 TWISTED SCREENED PAIRS (0.5 mm², CLASS 5 TINNED COPPER WIRE, HIGH DENSITY POLYETHYLENE INSULATION) + POLYURETHANE FILLER JACKET + POLYURETHANE SHEATH (RADIAL THICKNESS 1.5 mm)

OVERALL DIAMETER: 16.4 mm ±0.5 mm

MAXIMUM WORKING PRESSURE: 2500 PSI

e-mail your enquiry
